SAM21 SM8750 CPU BGA Reballing Stencil for Samsung S25 / S25 Plus

SAM21 SM8750 CPU BGA Reballing Stencil for Samsung S25 / S25 Plus

AMAOE SAM21 – SUPPORTED ICS, CPU

SAM: 21

58093-11

QPM7815A

WCN7851

MRX77775P

SM8750 CPU

BGA153

SDR875

SM8750

RAM496

PE442

TRFK2701

PM8550VE

8550VS

CPS4038

Snapdragon 8 Ultra SM8750 CPU Universal Series – 0.12MM

Compatible with: Samsung S25/25+, etc.

SAM:21 0.12MM

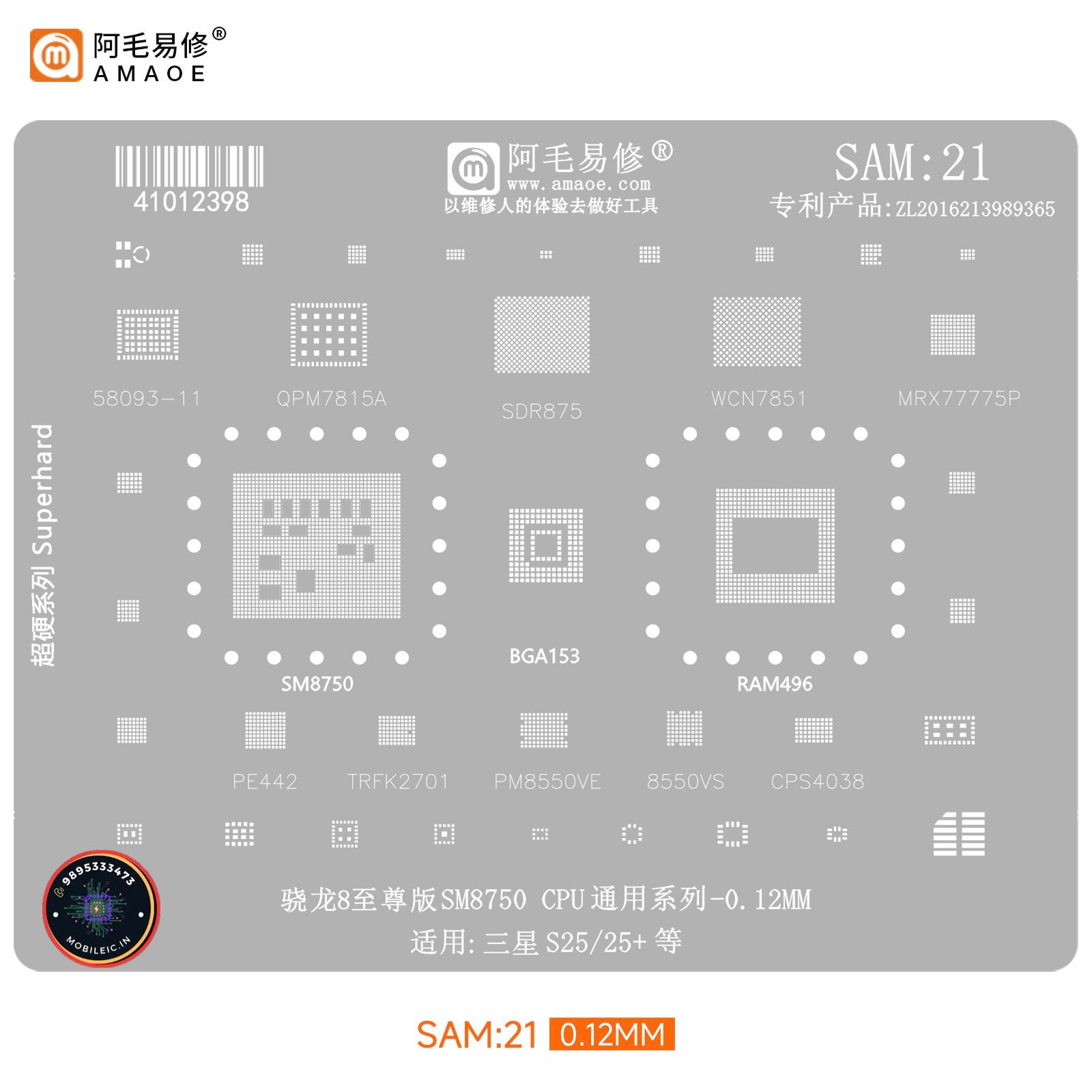

AMAOE SAM21 BGA REBALLING STENCIL (0.12MM) – SAMSUNG S25 / S25 PLUS
THE AMAOE SAM21 IS A SPECIALIZED, ULTRA-PRECISE REBALLING STENCIL DESIGNED FOR THE NEXT GENERATION OF MOBILE REPAIR. IT IS SPECIFICALLY ENGINEERED TO HANDLE THE QUALCOMM SM8750 (SNAPDRAGON 8 ELITE / GEN 4) CPU FOUND IN THE SAMSUNG GALAXY S25 AND S25 PLUS SERIES. THIS PROFESSIONAL-GRADE TOOL ENSURES PERFECT ALIGNMENT FOR ONE OF THE MOST ADVANCED CHIPSETS ON THE MARKET.

KEY PRODUCT SPECIFICATIONS

MODEL: AMAOE SAM21 (SAM:21)

APPLICATION: BGA REBALLING FOR SAMSUNG GALAXY S25 / S25+

TARGET IC: QUALCOMM SM8750 (SNAPDRAGON 8 ELITE) CPU AND RAM

THICKNESS: 0.12MM (ULTRA-THIN FOR HIGH-PRECISION SOLDERING)

MATERIAL: HIGH-QUALITY JAPANESE IMPORTED STEEL (ANTI-DEFORMATION)

DESIGN: FEATURES AMAOE’S PATENTED SQUARE HOLE MESH FOR UNIFORM SOLDER DISTRIBUTION.

ADVANCED DESIGN FEATURES

HEAT DISSIPATION & ANTI-BULGING: INCLUDES SPECIALIZED CIRCULAR RELIEF HOLES (散热孔防起鼓设计) THAT PREVENT THE STENCIL FROM WARPING OR “BULGING” WHEN EXPOSED TO HIGH TEMPERATURES FROM A HEAT GUN.

HIGH-TEMPERATURE RESISTANCE: DESIGNED TO WITHSTAND THE RIGOROUS THERMAL DEMANDS OF MODERN LEAD-FREE REBALLING WITHOUT LOSING ITS STRUCTURAL INTEGRITY.

PRECISION ALIGNMENT: THE HOLE LAYOUT IS CNC-MILLED TO PERFECTLY MATCH THE DENSE BALL GRID ARRAY (BGA) OF THE SM8750, ENSURING NO BRIDGING OR COLD SOLDER JOINTS.

POLISHED FINISH: THE STENCIL SURFACE AND HOLES ARE SPECIALLY TREATED TO ALLOW FOR EASY RELEASE OF SOLDER PASTE, REDUCING CLEANUP TIME AND INCREASING SUCCESS RATES.

Technical Specifications:

• Material: Stainless Steel

• Pattern: Square

• Dimensions (W x H): 10 x 8 cm

• Thickness: 0.12mm

• Color: Silver

• Item Weight: 50 g

• Country of Origin: China

• Net Quantity: 1

• Reusable: Yes
