QSU1 BGA REBALLING STENCIL FOR MSM8998 MSM8274 MSM8674 MSM8974 MSM8956 MSM8976

QSU1 BGA REBALLING STENCIL FOR MSM8998 MSM8274 MSM8674 MSM8974 MSM8956 MSM8976

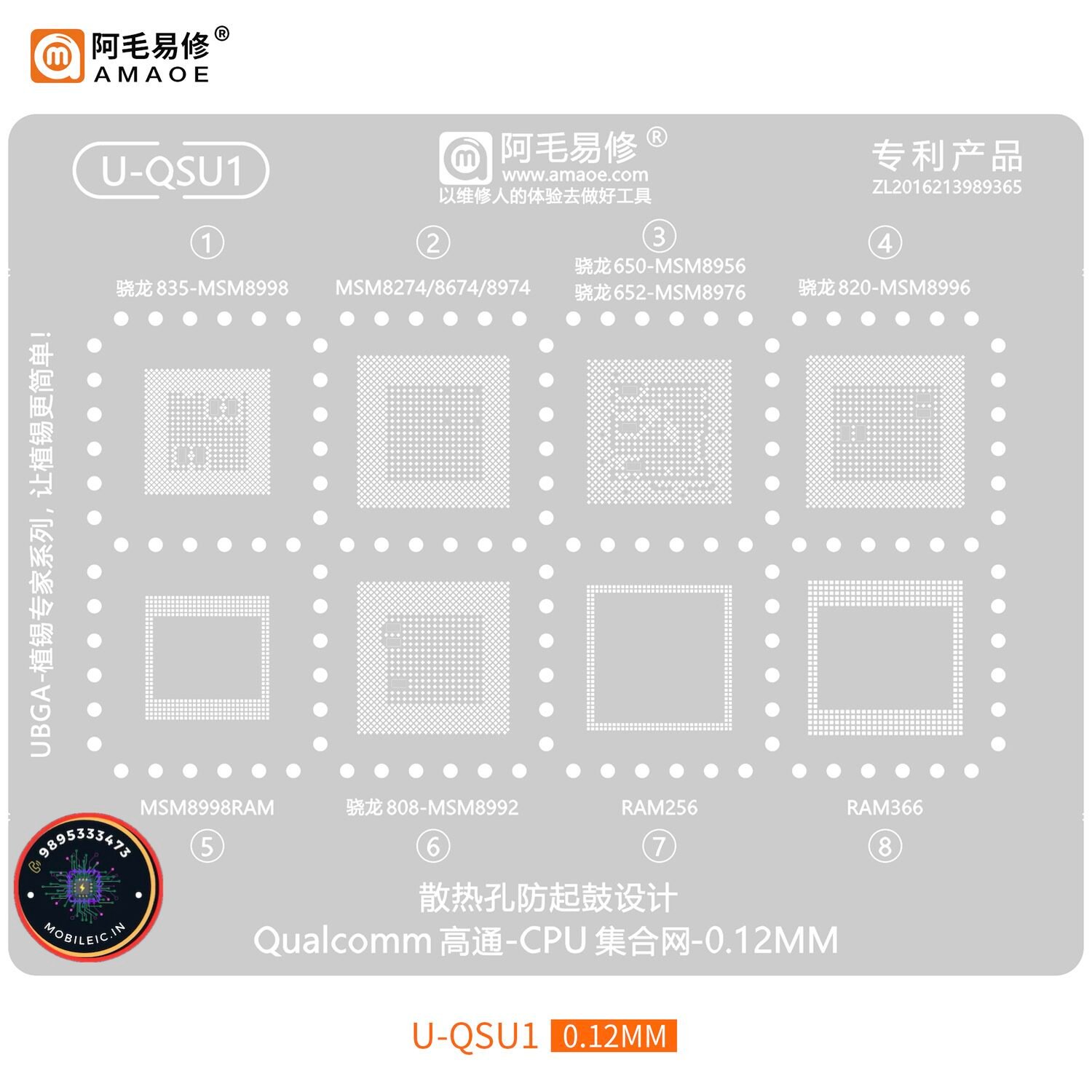

AMAOE U-OSU1 – SUPPORTED ICS, CPU

Snapdragon 835-MSM8998

MSM8274

MSM8674

MSM8974

Snapdragon 650-MSM8956

Snapdragon 652-MSM8976

Snapdragon 820-MSM8996

MSM8998RAM

Snapdragon 808-MSM8992

RAM256

RAM366 Heat dissipation hole anti-bulging design

Qualcomm – CPU Collection Network – 0.12MM

U-QSU1 0.12MM

AMAOE U-QSU1 Qualcomm CPU BGA Reballing Stencil (0.12mm Thickness)

Product Description

Professional-grade BGA Reballing Stencil designed by AMAOE, the industry leader in mobile repair tooling. This U-QSU1 (Qualcomm Series 1) stencil is engineered for high-precision alignment and durability, specifically tailored for a wide range of Snapdragon processors and dedicated RAM modules.

Featuring a specialized anti-bulging design, the stencil includes integrated heat dissipation holes (RAM366) to ensure a flat, uniform solder paste application even under thermal stress.

Key Features

• Precision Thickness: 0.12mm high-quality stainless steel for perfect solder ball consistency.

• Heat Dissipation Design: Special RAM366 anti-bulging technology prevents the stencil from warping during the heating process.

• Durable Material: Highly flexible yet robust steel ensures a long service life and resistance to deformation.

• Qualcomm CPU Series 1 Collection: Specifically optimized for early and mid-generation Snapdragon processors and their corresponding RAM layers.

Supported Chipsets & ICs

Technical Specifications

• Brand: AMAOE

• Model: U-QSU1 (Universal Qualcomm Series 1)

• Stencil Thickness: 0.12MM

• Design Feature: RAM366 Heat Dissipation Hole (Anti-Bulging)

Suggested Product Categories & Tags

• Categories: Mobile Repair Tools, BGA Reballing Stencils, Qualcomm IC Repair

• Tags: AMAOE, Snapdragon 835, BGA Stencil, MSM8998, 0.12mm Stencil, Mobile IC Repair Tools

Technical Specifications:

• Material: Stainless Steel

• Pattern: Square

• Dimensions (W x H): 10 x 8 cm

• Thickness: 0.12mm

• Color: Silver

• Item Weight: 50 g

• Country of Origin: China

• Net Quantity: 1

• Reusable: Yes
