F-UBQ01BO UV STENCIL GREEN OIL UV STENCIL FILM

F-UBQ01BO UV STENCIL GREEN OIL UV STENCIL FILM

• Net Quantity: 1

FEATURES:

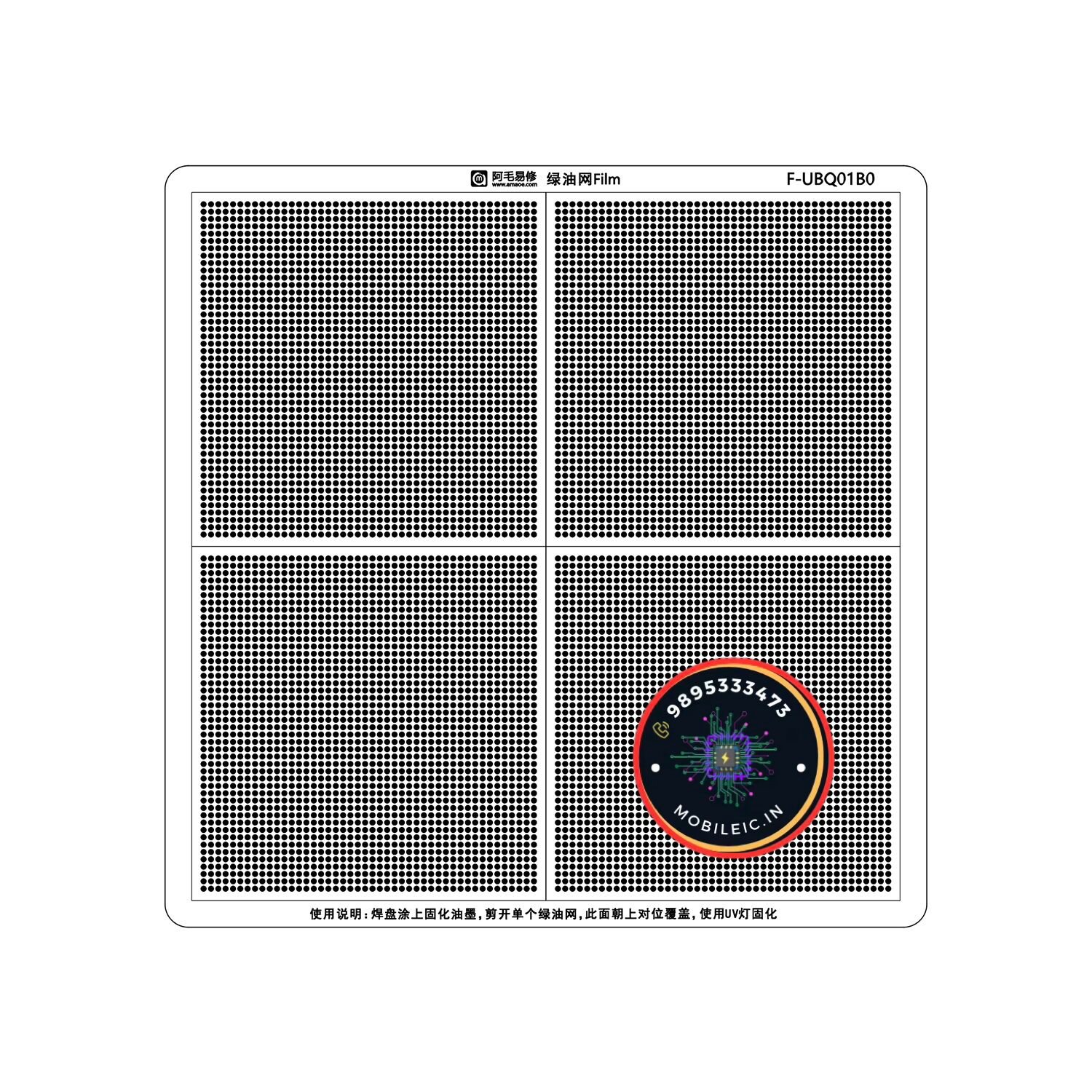

SOLDER MASK REPAIR GREEN OIL UV STENCIL

EACH STENCIL IS PROOFREAD ACCORDING TO THE ORIGINAL FACTORY DRAWINGS TO

ENSURE THAT EVERY SOLDER JOINT MUST NOT BE MISSING, COMPLETELY CONSISTENT WITH PRECISE ALIGNMENT

HIGH PRECISION, NO BURRS, SO THAT EACH OF YOUR MESH HOLES CAN BE OF THE SAME SIZE AND NOT STUCK TIN BALLS

HOW TO USE:

AFTER CLEANING THE MOTHERBOARD OR CHIP PART, DRY IT WITH AN AIR GUN TO KEEP IT DRY

USE A BLADE TO APPLY AN APPROPRIATE AMOUNT OF CURING GREEN OIL PARALLEL TO THE CHIP OR MOTHERBOARD THAT NEEDS TO BE REPAIRED

PAY ATTENTION TO APPLYING THE GREEN OIL AS EVENLY AS POSSIBLE, THE THINNER THE COATING, THE BETTER, TRY NOT TO HAVE AIR BUBBLES WHEN LAMINATING

THEN PUT THE GREEN OIL STENCIL (THE PRINTED SIDE) DOWN AGAINST THE PADS, AND THE PADS ON THE GREEN OIL NET ARE ALIGNED WITH THE PADS ON THE CHIP OR THE MOTHERBOARD.

ACCORDING TO THE THICKNESS OF THE APPLIED GREEN OIL, IT IS CURED BY THE PURPLE LIGHT EMITTED BY THE PURPLE LIGHT LAMP FOR 6-15 SECONDS

CLEAN THE PAD PART WITH PCB WATER OR ALCOHOL, AND THEN CONTINUE TO USE THE CURING LAMP TO CURE IT FIRMLY, THAT IS, COMPLETE THE QUICK REPAIR OF THE CHIP OR MOTHERBOARD PAINT DROP

AMAOE UBQ01B0 Reballing Stencil

• Product Name: AMAOE 0.25mm Tesla UBQ01B0 Electric Car Chip BGA Reballing Stencil
• Manufacturer: AMAOE (a leading brand in professional reballing stencils)
• Primary Application: This stencil is designed for a highly specialized and uncommon repair: the UBQ01B0 chip found in Tesla electric vehicles. This indicates the component is not a common smartphone or tablet part, but a critical integrated circuit within a car’s electronic system.
• Key Feature – 0.25mm Thickness: The most notable feature is its ultra-fine 0.25mm thickness. This is significantly thinner than the standard 0.12mm stencils used for most mobile CPUs. This extreme precision is required for the incredibly small and densely packed solder pads on the UBQ01B0 chip, which is likely a high-performance processor or controller.
• Repair Scenario: For a repair technician, this stencil is an essential tool for fixing a specific fault within a Tesla’s electronic control unit (ECU). The repair would involve removing the faulty UBQ01B0 chip, using the stencil to apply fresh solder balls to its pads, and then re-soldering it onto the circuit board.
• Target Audience: This is not a universal stencil and is intended for highly specialized professionals in the automotive electronics repair field, particularly those who work on Tesla vehicles.

Summary of the Component

While a public datasheet for the UBQ01BO chip itself is not available, the existence of a dedicated reballing stencil from a reputable manufacturer confirms its status as a BGA (Ball Grid Array) packaged integrated circuit. Its use in Tesla vehicles suggests it is a crucial component, likely a processor or microcontroller that is susceptible to failure, thus creating a need for a specialized repair tool.
