AMAOE U-SMG5 Stencil: Samsung Exynos Flagship CPU & PMIC Expert

Product Overview

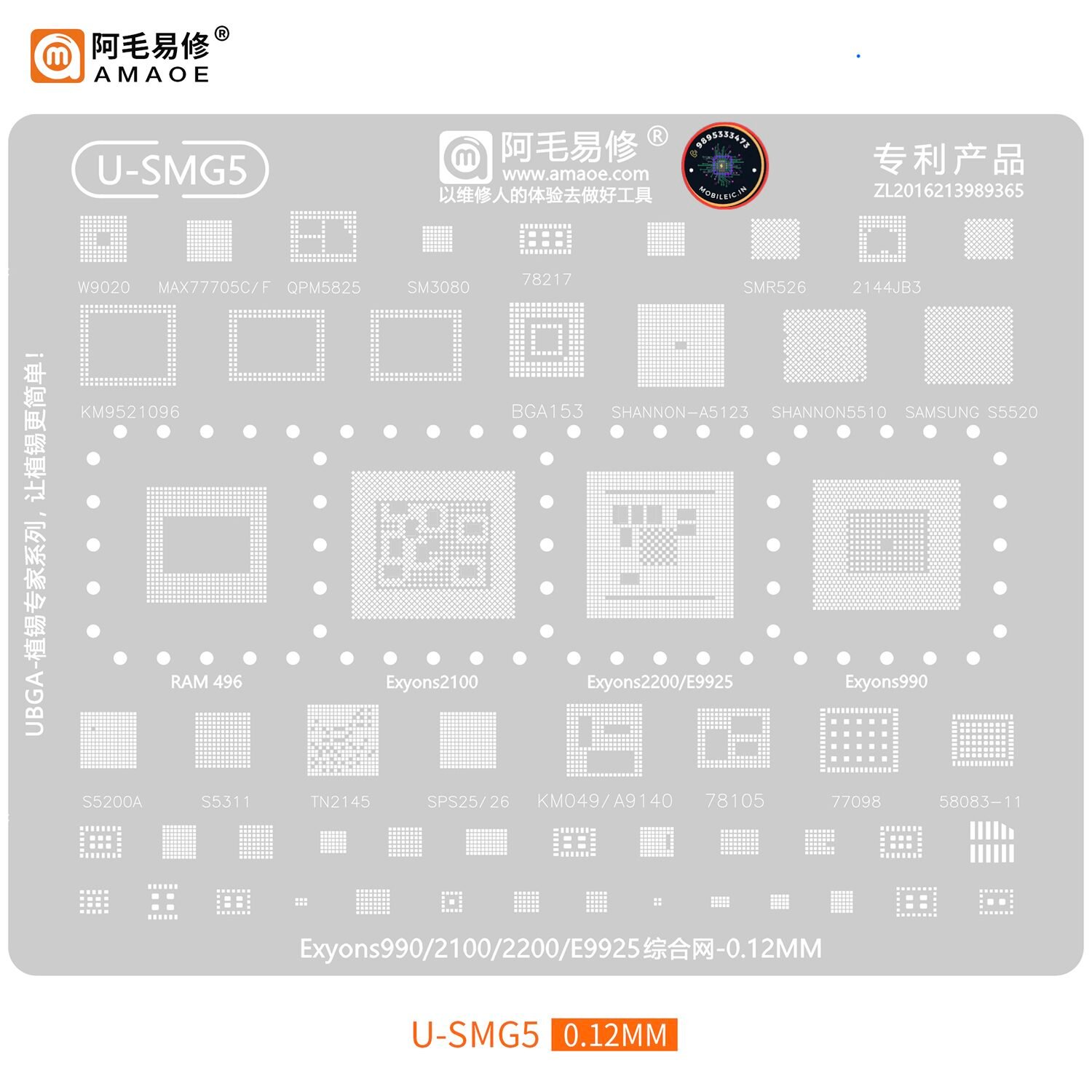

The AMAOE U-SMG5 Stencil (U-SMG5_钢网) is a precision reballing stencil from the “UBGA-Tin Planting Expert Series” (UBGA-植锡专家系列). It is specifically engineered to support the reballing of several generations of high-performance Samsung Exynos SoCs and their custom companion chips (PMICs and RF modules).

Model: AMAOE U-SMG5
Thickness: 0.12MM (Standard professional thinness for highly accurate solder paste or ball application).
Target Series: Exynos 990, Exynos 2100, Exynos 2200, E9925 (These chips power Samsung’s flagship Galaxy S and Note devices).
Material: High-quality stainless steel, ensuring durability and resistance to heat warpage.
Patent: ZL2016213989365 (Indicating a patented product design).

Key Supported Processors (CPUs/SoCs)

The stencil is designed to reball the following flagship Samsung processors:

Chip Model	Commercial Exynos Name	Function / Notes
Exynos2200	Exynos 2200 Series	High-end/Flagship SoC (e.g., Galaxy S22 series)
Exynos2100	Exynos 2100 Series	High-end/Flagship SoC (e.g., Galaxy S21 series)
Exyons990	Exynos 990 Series	High-end/Flagship SoC (e.g., Galaxy S20 series, Note 20 series)
E9925	Exynos 9925 (Internal/Sub-Model)	Variation of the 990 series or similar flagship-tier chip.

Supported Companion ICs and Footprints

This stencil is comprehensive, including patterns for many custom Samsung Power Management and RF components:

Power Management & Connectivity ICs

Chip Model	Function / Notes
MAX77705C/F	PMIC (Power Management IC – Highly common in Samsung flagships)
SMR526, S5200A, S5311	PMICs (Various custom Samsung Power/Charging ICs)
TN2145, SPS25, SPS26	PMICs/Auxiliary (Additional power or logic control chips)
W9020	RAM/CPU (Likely an associated component for the CPU cluster)

RF and Modem Components

Chip Model	Function / Notes
SHANNON-A5123	Shannon 5G Modem (Used with Exynos 2100/2200 for 5G connectivity)
SHANNON5510	Shannon Modem/RF (Older modem or RF module)
78217, 78105, 77098, 58083-11	RF Front-End Modules (FEM/PA) (Power Amplifiers and switches)
QPM5825	RF Front-End Module (FEM) (Likely a Qualcomm/Qorvo component used for power amplification)
2144JB3, KM9521096, KM049, A9140	Auxiliary/Other (Various supporting ICs like power/RF switches or buffer chips)

Universal Memory Footprints

Footprint	Function / Notes
BGA153	Standard footprint for memory chips (e.g., eMMC/UFS/DDR).
RAM 496	Footprint for RAM modules often stacked atop the CPU.

Summary of Use

The AMAOE U-SMG5 is the dedicated tool for complex microsoldering repairs on Samsung’s recent flagship chips. The combination of CPU, 5G Modem (Shannon), and critical custom PMIC footprints makes it essential for repairing power faults and “no power” issues on devices using the Exynos 990, 2100, and 2200 series.

CPU / SoC Models (The Flagship Processors)

These are the primary Samsung Exynos Application Processors (AP) that the stencil is designed to reball:

Chip Model	Commercial Exynos Series	Function / Notes
Exynos2200	Exynos 2200 Series	High-end 5G Flagship SoC (e.g., Galaxy S22)
Exynos2100	Exynos 2100 Series	High-end 5G Flagship SoC (e.g., Galaxy S21)
Exyons990	Exynos 990 Series	High-end Flagship SoC (e.g., Galaxy S20, Note 20)
E9925	Exynos 9925 (Internal/Sub-Model)	Variation of a flagship-tier Exynos chip.

II. Supporting / Companion ICs

These chips handle power, modem communication, and RF signal processing, and are essential for the CPU to function.

A. Power Management ICs (PMICs)

These are custom Samsung or partner power chips critical for the phone’s operation:

Chip Model	Function / Notes
MAX77705C/F	PMIC (Power Management IC – Common in Samsung flagships)
SMR526, SAMSUNG S5520	PMICs (Samsung Power/Charging/Sub-PMICs)
S5200A, S5311	PMICs (Samsung Power/Charging/Sub-PMICs)
SM3080	PMIC (Likely a sub-PMIC or power switch)
TN2145, SPS25, SPS26	Power/Logic (Auxiliary power or control chips)

B. RF and Modem Components

These chips handle the 5G/4G connectivity for the Exynos SoCs:

Chip Model	Function / Notes
SHANNON-A5123	Shannon 5G Modem (Critical 5G component for Exynos 2100/2200)
SHANNON5510	Shannon Modem/RF (Older modem or RF module)
QPM5825	RF Front-End Module (FEM) (Power Amplifier/Switch)
78217, 78105, 77098, 58083-11	RF Front-End Modules (FEM/PA) (Power Amplifiers and switches)

C. RAM and Auxiliary Components

Chip Model	Function / Notes
RAM 496	Footprint for RAM chips (often stacked on the CPU in these models).
BGA153	Universal Memory Footprint (For UFS/eMMC/DDR memory chips).
W9020	Auxiliary Chip (General logic, buffer, or sub-power).
KM9521096, KM049, A9140, 2144JB3	Auxiliary/Other (Various supporting ICs like control or sub-switches).

Technical Specifications:

Material: Stainless Steel
Pattern: Square
Dimensions (W x H): 10 x 8 cm
Thickness: 0.12mm
Color: Silver
Item Weight: 50 g
Country of Origin: China
Net Quantity: 1
Reusable: Yes
