AMAOE Stencil for iPhone 15 Face ID Dot Matrix

AMAOE Stencil for iPhone 15 Face ID Dot Matrix

AMAOE Stencil for iPhone 15 Face ID Dot Matrix

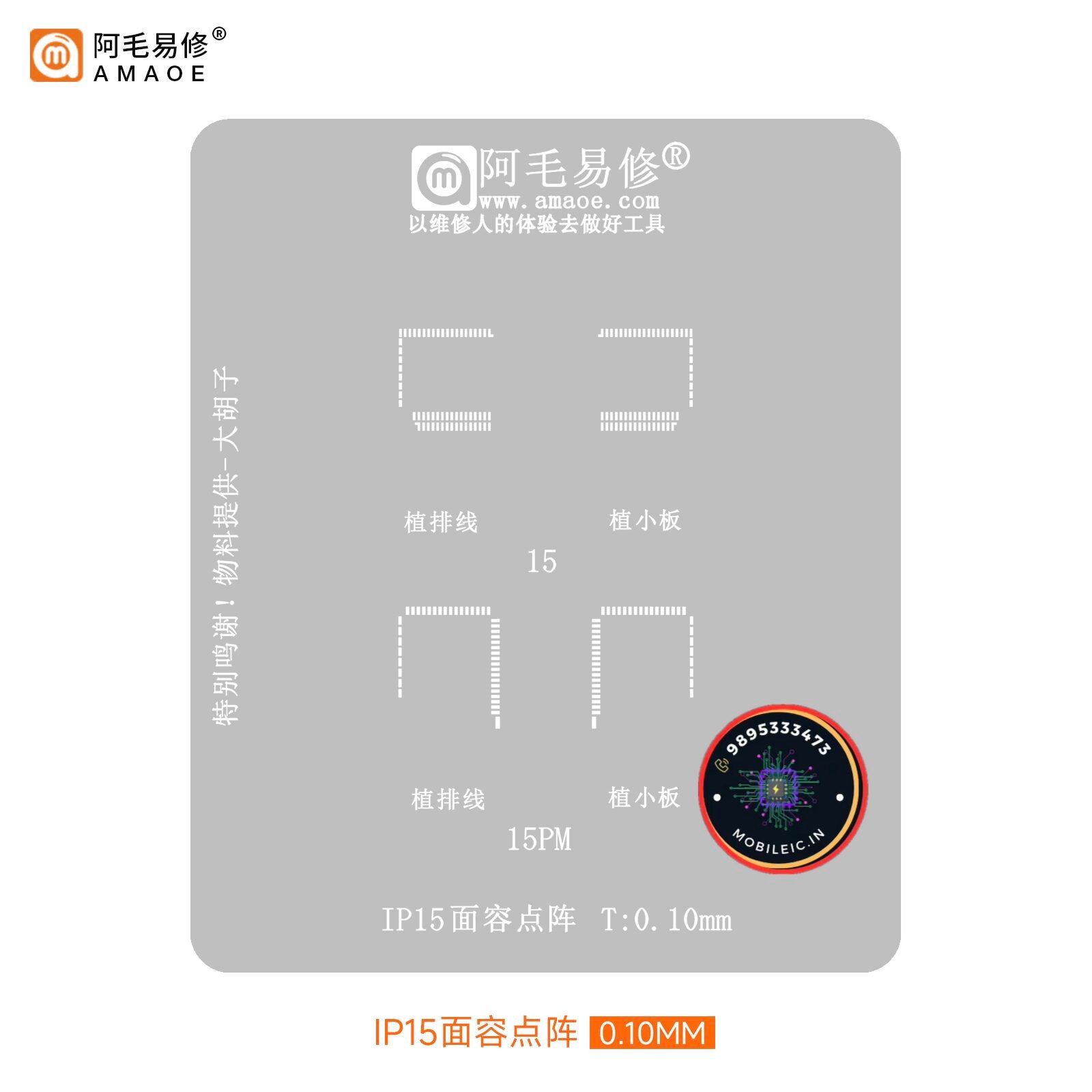

This is a professional-grade reballing stencil from AMAOE, specifically designed for the intricate repair of the iPhone 15’s facial dot matrix. As a highly sensitive component of the Face ID system, a damaged dot matrix can cause the feature to fail. This stencil provides a crucial tool for technicians to perform a precise, component-level repair.

• Dedicated to Face ID Repair: This stencil is engineered specifically for the intricate BGA-packaged integrated circuits (ICs) on the iPhone 15 and iPhone 15 Pro Max face ID assemblies. It is used to reball the ICs responsible for projecting the dot matrix pattern.
• Dual Function (植排线 / 植小板): This versatile tool allows a technician to reball ICs on two different parts of the Face ID system: the flex cable itself (植排线) and the associated small circuit board (植小板). This makes it a comprehensive solution for dot matrix repairs.
• Ultra-Thin 0.10mm Thickness: With an optimal thickness of just 0.10mm, the stencil ensures the perfect amount of solder paste is applied to the extremely small pads of the dot matrix ICs, preventing shorts and ensuring a reliable repair.
• Professional Quality: Made with the repair person in mind, this tool is designed for accuracy and efficiency. Its durable construction ensures a long service life, even with frequent use.

• Material: Stainless Steel
• Pattern: Square
• Thickness: 0.12mm
• Color: Silver
• Item Weight: 50 g
• Country of Origin: China
• Net Quantity: 1
• Reusable: Yes
