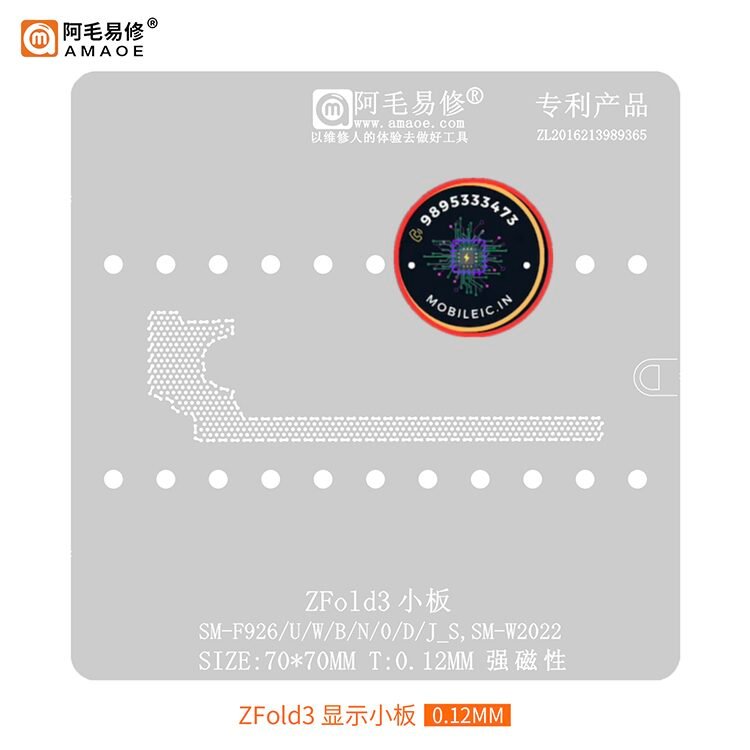

AMAOE Reballing Stencil for Samsung Z Fold 3 Display F926 W2022

AMAOE Reballing Stencil for Samsung Z Fold 3 Display F926 W2022

AMAOE Reballing Stencil for Samsung Z Fold 3 Display

This is a professional-grade reballing stencil from AMAOE, designed for the highly specialized repair of the Samsung Galaxy Z Fold 3‘s display components. Unlike a motherboard stencil, this tool targets the “small board” on the display assembly itself, making it an essential tool for technicians fixing display-related issues.

• Dedicated Display Repair: This stencil is engineered specifically for the ICs on the Z Fold 3’s display circuit board, a common point of failure for issues like display glitches, touch screen problems, or screen blanking.
• Wide Compatibility: This single stencil works for a variety of Z Fold 3 models, including the standard global version (SM-F926) and its regional variants, as well as the special Samsung W2022 model.
• Strong Magnetic Properties (强磁性): The powerful magnetic property allows the stencil to securely and quickly align with a reballing platform. This is a critical feature that prevents misalignment and ensures accuracy when dealing with thousands of microscopic solder pads on a delicate display component.
• Ultra-Precision 0.12mm Thickness: With an optimal thickness of 0.12mm, the stencil ensures the correct amount of solder paste is applied to the chip’s pads, which is vital for preventing shorts and ensuring a robust, reliable repair.
• Patented Design: The stencil’s core features are protected by a Chinese patent, reinforcing its status as a unique and professionally-developed tool.

• Material: Stainless Steel
• Pattern: Square
• Thickness: 0.12mm
• Color: Silver
• Item Weight: 50 g
• Country of Origin: China
• Net Quantity: 1
• Reusable: Yes
