AMAOE MQ1 Stencil MT6771 MT6739 MT6757 for Qualcomm/MTK CPU STENCIL
AMAOE MQ:1– SUPPORTED ICS, CPU
SDM710
SDM845
SDM660
MT6771V
MT6757V
MT6739V
MT6763V
SDM845 RAM
₹300.00

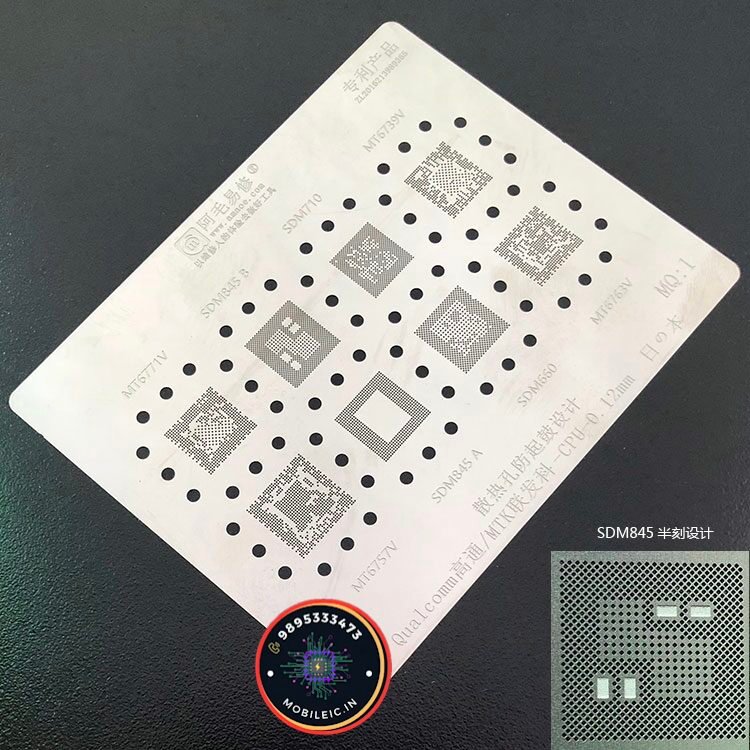

AMAOE MQ1 Stencil MT6771 MT6739 MT6757 for Qualcomm/MTK CPU STENCIL
PAMAOE Stencil MQ1 for Qualcomm/MTK CPU is a high-precision BGA (Ball Grid Array) reballing stencil primarily used by technicians for the repair and rework of mobile device logic boards.
Here is a breakdown of its key features and specifications:
Key Features
High Precision Rework Tool: Engineered for BGA reballing operations, which involve removing and reapplying new solder balls to a chip’s pads, ensuring accurate and successful chip-level repair.
Dual-Platform Compatibility: Specifically designed to be compatible with a range of both Qualcomm Snapdragon and MediaTek (MTK) CPU/Power IC chips, making it a versatile tool for mobile phone repair.
Optimal Thickness: The stencil has a standard thickness of 0.12mm, which is an industry-preferred dimension for precision solder paste or solder ball application during the reballing process.
Durable Construction: It is typically made from stainless steel, offering long-lasting durability, resistance to high temperatures from rework stations, and a cooling anti-drum design to prevent warping during heating.
Model Designation: The specific model number is MQ1 (sometimes listed as MQ:1).
Supported Chips (Examples)
The MQ1 stencil is designed to support various chip models. Examples of compatible Qualcomm and MTK ICs include:
Qualcomm: SDM710, SDM845 (A and B variants), SDM660.
MediaTek (MTK): MT6771V, MT6757V, MT6739V, MT6763V.
Supported CPU and Power ICs (AMAOE MQ1)
Note on SDM845 RAM
The MQ1 stencil is explicitly advertised to support both the SDM845 CPU and the SDM845 RAM chip, which is crucial for the reballing process when these components are stacked (PoP – Package on Package) or placed adjacent to each other.
For any professional BGA rework, always visually confirm the chip’s physical pad layout against the stencil before application to ensure a perfect match.
Technical Specifications:
- Material: Stainless Steel
- Pattern: Square
- Dimensions (W x H): 10 x 8 cm
- Thickness: 0.12mm
- Color: Silver
- Item Weight: 50 g
- Country of Origin: China
- Net Quantity: 1
- Reusable: Yes
