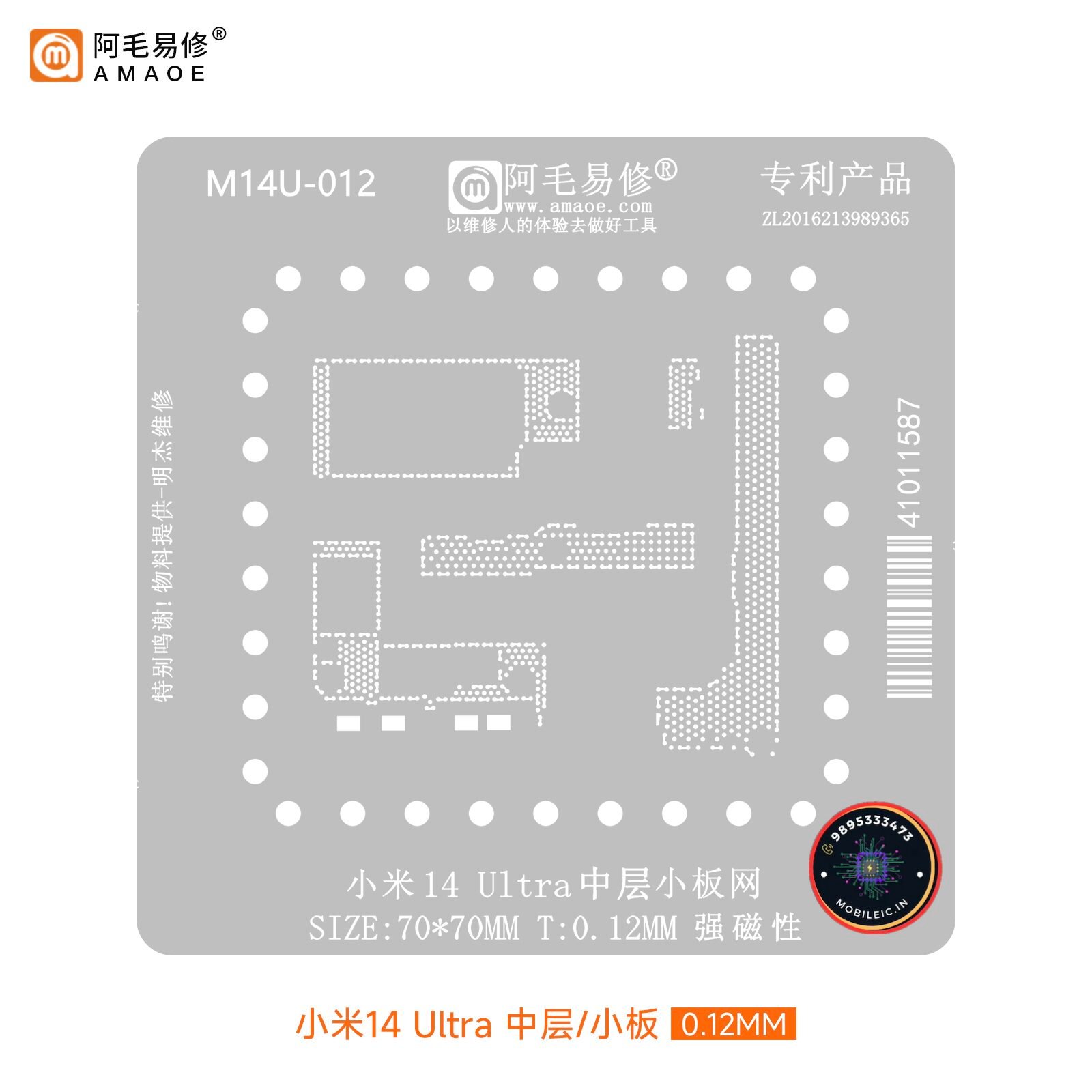

1. AMAOE M14U-012 Reballing Stencil for Xiaomi 14 Ultra

This is a professional-grade reballing stencil from AMAOE, designed for advanced repair of the Xiaomi 14 Ultra. This tool is essential for working on the phone’s “middle layer” and “small board,” where critical ICs are located. Crafted with the repair technician in mind, it provides a precise and reliable solution for complex, multi-layer board repairs.

• Dedicated to Xiaomi 14 Ultra (中层小板): This stencil is a precision tool specifically designed for the middle layer and secondary circuit boards of the Xiaomi 14 Ultra’s motherboard. Modern flagships use a “sandwich” design, and this tool is engineered to perfectly match the layout of its components.
• Strong Magnetic Properties (强磁性): A key innovation, the strong magnetic property allows the stencil to securely and quickly align with a magnetic reballing jig. This prevents any shifting during the application of solder paste, a crucial benefit for precision work.
• Ultra-Precision 0.12mm Thickness: With an optimal thickness of 0.12mm, the stencil ensures the correct amount of solder paste is applied to the chip’s microscopic pads. This precision is essential for preventing shorts and creating a robust connection.
• Patented Design: The stencil’s core features are protected by a Chinese patent, reinforcing its status as a unique and professionally developed tool.

Technical Breakdown

• Model: M14U-012
• Material: Stainless Steel
• Pattern: Square
• Thickness: 0.12mm
• Color: Silver
• Item Weight: 30 g
• Country of Origin: China
• Net Quantity: 1
• Reusable: Yes
• Brand: AMAOE (阿毛易修)
• Compatible Device: Xiaomi 14 Ultra Motherboard (middle layer / small board)
• Likely Chipset: This stencil is designed for the chips in the middle layer of the Xiaomi 14 Ultra, which is the Qualcomm Snapdragon 8 Gen 3 SoC.
• Dimensions: 70 x 70 mm
• Thickness: 0.12mm
