7-14 Baseband, NAND, WiFi & NFC Repair Stencil FOR IPHONE

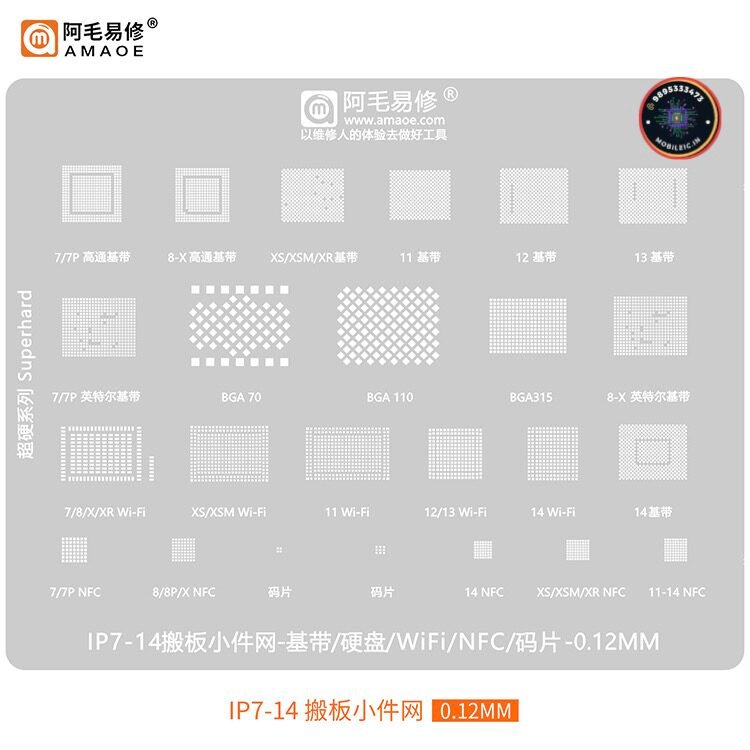

iPhone 7-14 Baseband, NAND, WiFi & NFC Repair Stencil (0.12mm)
IP7–14 Small Components Network Stencil – Baseband / NAND / WiFi / NFC SUPPORTED ICS, CPU
7/7P Qualcomm Baseband
8-X Qualcomm Baseband
XS/XSM/XR Baseband
11 Baseband
12 Baseband
13 Baseband
7/7P Intel Baseband
BGA 70 NAND
BGA 110 NAND
BGA315
8-X Intel Baseband
7/8/X/XR Wi-Fi IC
XS/XSM Wi-Fi IC
11 Wi-Fi IC
12/13 Wi-Fi IC
14 Wi-Fi IC
14 Baseband
7/7P NFC IC
8/8P/X NFC IC
14 NFC
XS/XSM/XR NFC IC
11-14 NFC
IP7-14 Small Components Network – Baseband/Hard Drive NAND /WiFi/NFC/Chip STENCIL – 0.12MM
✅ Supported Baseband IC Models
-
iPhone 7 / 7 Plus – Qualcomm Baseband
-
iPhone 7 / 7 Plus – Intel Baseband
-
iPhone 8 – X Qualcomm Baseband
-
iPhone 8 – X Intel Baseband
-
iPhone XS / XSM / XR Baseband
-
iPhone 11 Baseband
-
iPhone 12 Baseband
-
iPhone 13 Baseband
-
iPhone 14 Baseband
✅ Supported NAND (Hard Drive) Stencils
-
BGA 70 NAND
-
BGA 110 NAND
-
BGA 315 NAND
✅ Supported WiFi IC Stencils
-
iPhone 7 / 8 / X / XR WiFi IC
-
iPhone XS / XSM WiFi IC
-
iPhone 11 WiFi IC
-
iPhone 12 / 13 WiFi IC
-
iPhone 14 WiFi IC
✅ Supported NFC IC Stencils
-
iPhone 7 / 7 Plus NFC IC
-
iPhone 8 / 8 Plus / X NFC IC
-
iPhone XS / XSM / XR NFC IC
-
iPhone 11 – 14 NFC IC
-
iPhone 14 NFC
🔧 Product Features
-
Thickness: 0.12MM
-
High-precision laser cutting
-
Heat-resistant stainless steel
-
Accurate pad alignment
-
Designed for professional microsoldering repair
-
Suitable for Baseband, NAND, WiFi, NFC, and small network IC chips
🎯 Ideal For
-
iPhone motherboard repair technicians
-
Data recovery specialists
-
NAND reballing and baseband repair
-
Professional mobile phone repair shops
This IP7–14 Small Components Network Transfer Mesh Stencil
Gemini said
iPhone 7-14 Baseband, NAND, WiFi & NFC Repair Stencil (0.12mm)
This high-precision 0.12mm repair stencil is an all-in-one solution for logic board technicians specializing in iPhone hardware. Designed for durability and extreme accuracy, it covers the most critical “small components” and peripheral ICs across eight generations of Apple devices, from the iPhone 7 series through the iPhone 14 series.
Whether you are performing a NAND upgrade, fixing a “No Service” baseband issue, or resolving WiFi grayed-out errors, this stencil provides the specific hole patterns required for professional reballing.
Comprehensive Component Support
Technical Highlights
-
0.12mm Optimal Thickness: Engineered to prevent the stencil from bulging under high heat while ensuring uniform solder ball height.
-
Square-Hole Design: CNC-machined square holes facilitate easier paste release and prevent solder bridging on high-density chips like the BGA 315 NAND.
-
High-Grade Alloy Steel: Resistant to warping and oxidation, ensuring a long lifespan even with daily professional use in high-volume repair shops.
-
Heat Dissipation Vents: Strategic spacing between IC layouts reduces thermal stress on the stencil during the reflow process.
Why This Stencil is Essential
In modern iPhone repair, “No Service” or “Searching” issues often stem from fractured solder joints under the Baseband IC. This stencil allows for a perfect reball of both Qualcomm and Intel variants. Furthermore, it supports the BGA 315 NAND, making it a future-proof tool for storage expansions on the latest iPhone 14 models.
Technical Note: For iPhone 12 through 14 series components, we recommend using high-quality 183°C leaded solder paste for the best mechanical strength on these high-stress areas of the logic board.
Technical Specifications:
-
Material: Stainless Steel
-
Pattern: Square
-
Dimensions (W x H): 10 x 8 cm
-
Thickness: 0.12mm
-
Color: Silver
-
Item Weight: 50 g
-
Country of Origin: China
-
Net Quantity: 1
-
Reusable: Yes
